JTL

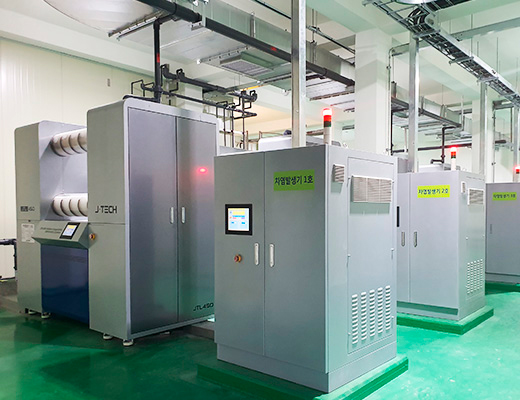

JTL MODEL
Large : 350~500kg/day (770~1100lbs/day)
Features
▪︎ Produces high-quality HOCL, reduces by-products, and suppresses the adhesion of electrode scale by controlling the temperature with electrolyte circulation
▪︎ Transparent electrolytic cell to visually identify electrode status inside
▪︎ No need for mass distribution of hazardous chemicals
▪︎ Excellent sterilization effect with stable concentration supply
Applications
▪︎ Large water purification plant ▪︎ Large sewage treatment plant
▪︎ Seawater electrolysis system (A heat-exchange, sea water treatment, and biofoulding prevention system)
▪︎ Vessel ballast water treatment system
Specifications
Model
Treatment capacity (㎥/day)
Service water (based on 3ppm)
Effective chlorine production (kg/day)
DC power (kW)
JTS-350
116,667
350
80
JTS-400
133,333
400
90
JTS-450
150,000
450
100
JTS-500
166,667
500
100
JTL MODEL
Large : 150~300kg/day (330~660lbs/day)
Features
▪︎ Produces high-quality HOCL, reduces by-products, and suppresses the adhesion of electrode scale by controlling the temperature with electrolyte circulation
▪︎ Transparent electrolytic cell to visually identify electrode status inside
▪︎ No need for mass distribution of hazardous chemicals
▪︎ Excellent sterilization effect with stable concentration supply
Applications
▪︎ Large water purification plant ▪︎ Large sewage treatment plant
▪︎ Seawater electrolysis system (A heat-exchange, sea water treatment, and biofoulding prevention system)
▪︎ Vessel ballast water treatment system
Specifications
Model
Treatment capacity (㎥/day)
Service water (based on 3ppm)
Effective chlorine production (kg/day)
DC power (kW)
JTS-150
50,000
150
35
JTS-200
66,667
200
50
JTS-250
83,333
250
60
JTS-300
100,000
300
70
